GENERAL INFORMATION

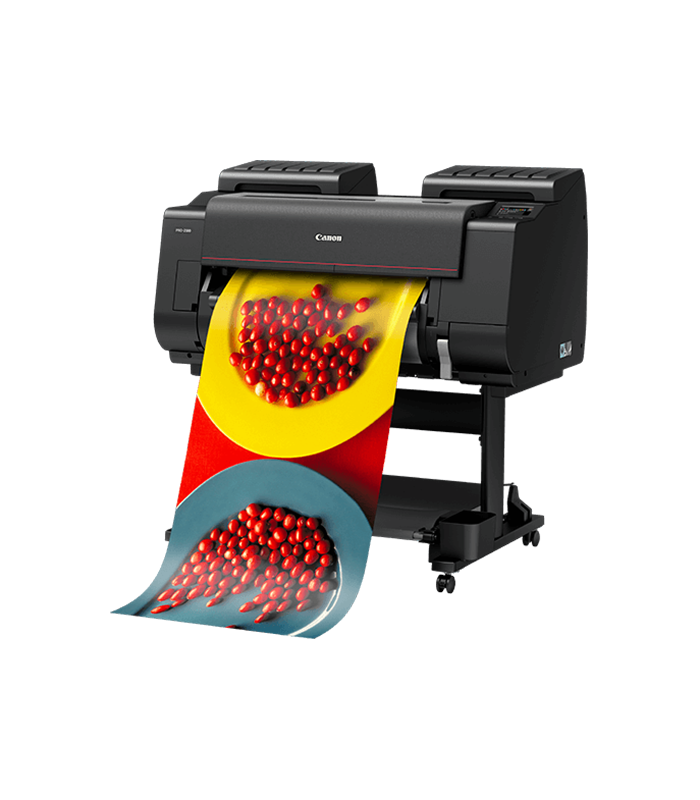

The 24-inch imagePROGRAF PRO-2100 printer is designed to exceed expectations for image quality and colour consistency in a large format printer. The use of a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set plus Chroma Optimiser, a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieves a balance between exceptional print quality and speed.
The imagePROGRAF PRO-2100 has been designed to include intelligent technology for advanced media handling, increased security features, borderless printing and improved operational design.
Bring your prints to life with the imagePROGRAF PRO Series.
TECHNICAL CHARACTERISTICS
| CATEGORY | INFORMATION |
|---|---|
| Printer type | 11-Colour plus Chroma Optimiser 24-inch Printer |
| Number of nozzles | Total: 18,432 All colors: 1,536 nozzles |
| Nozzle pitch | 600 dpi x 2 Non-firing nozzle detection and compensation |
| Print resolution (Up to) | 2400×1200dpi (Max) |
| OS Compatibility | 32bit: Windows® (7/8.1/10) 64bit: Windows 7, Windows 8.1, Windows 10Windows Server 2008R2, Windows Server 2012/2012R2Windows Server 2016, Windows Server 2019 Mac (OS 10.11.6), (Mac OS 10.12 – 10.15) |
| Standard interfaces | USB 2.0 High-Speed 10/100/1000 Base-T/TX Wireless LAN (IEEE 802.11 b/g/n) USB Thumb Drive |
| Ink droplet size | minimum 4 picoliter Pigment based LUCIA PRO Ink |
| Ink capacity | 160ml, 330ml, or 700ml per colour |
| Colour set | Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, +Chroma Optimiser |
| Hard drive | 500GB |
| Media width | Cut Sheet – 6″- 24″ Roll Feed – 6″ – 24″ |
| Media thickness | Roll: 0.07 – 0.8 mm (2.8 – 31.5mil) |
| Maximum roll print length | Roll Feed – 59 (18 meters) |
| Maximum media roll diameter | 6.7″ (170mm) |
| Borderless printing width | Custom roll width 6″ – 24″ with micro margin technology |
| Paper feed method | Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output |
| Languages | Swift Graphic Raster (SGRaster) |
| Noise level approx. | Operation: 46 dB (A) or less Acoustic Power: 6.4 Bels or less |
| Physical dimensions | 46.0″ (H) x 43.7″ (W) x 38.7″ (D) (with basket open) |
| Weight | approx.223 lbs (roll holder included, no inks, no print heads) |
| Power source | AC 100-240V (50-60Hz) |
| Power consumption | Maximum: 93 W or less Standby 2.0 W or less Power Off: 0.3 W or less |
| Operating environment | Temperature: 59 – 86°F Relative Humidity: 10-80% (No Condensation) |
| User-replaceable items | Print Head (PF-10) Maintenance Cartridge (MC-30) Ink Tanks (PFI-1100/PFI-1300/PFI-1700) |
| Software included | imagePROGRAF Printer Driver, Professional Print & Layout, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Gallery Wrap Feature, Direct Print & Share |
